Broadleaf Modular Walls


The BroadleafTM Modular Wall System gives museums flexibility in wall arrangement for temporary exhibitions or semi-permanent installations.

Combine multiple wall sections to create layouts dependent on your needs. Wall sections are bolted together before applying graphics. The standard straight wall section is 80″ tall by approximately 4′ wide and includes adjustable leveler feet. Wall panel standard thickness is 6″.

  • Wall sections come with unfinished masonite panels (ready to paint or apply adhesive graphics)
  • Printed graphics panels are available for an additional charge
  • Panels do not require fasteners for installation!
  • Joint trim is aluminum (mill finish standard; powder coat available)

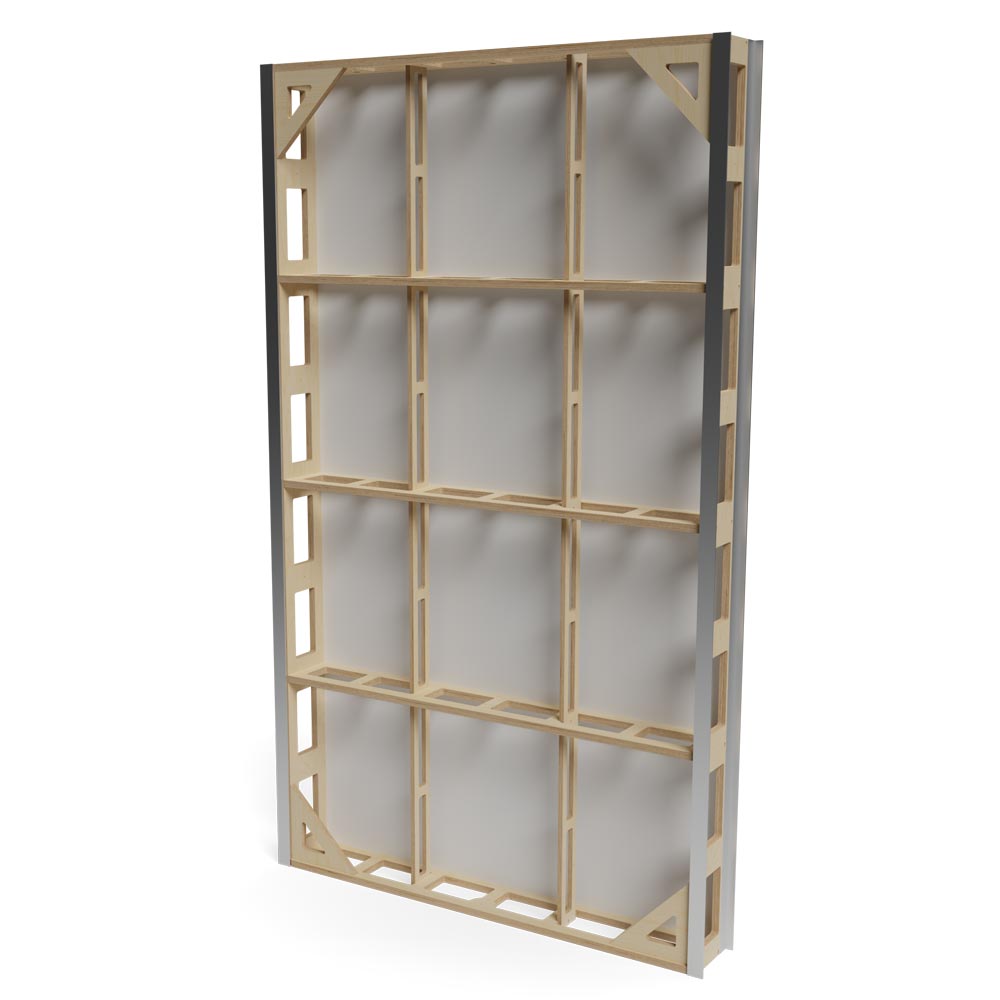

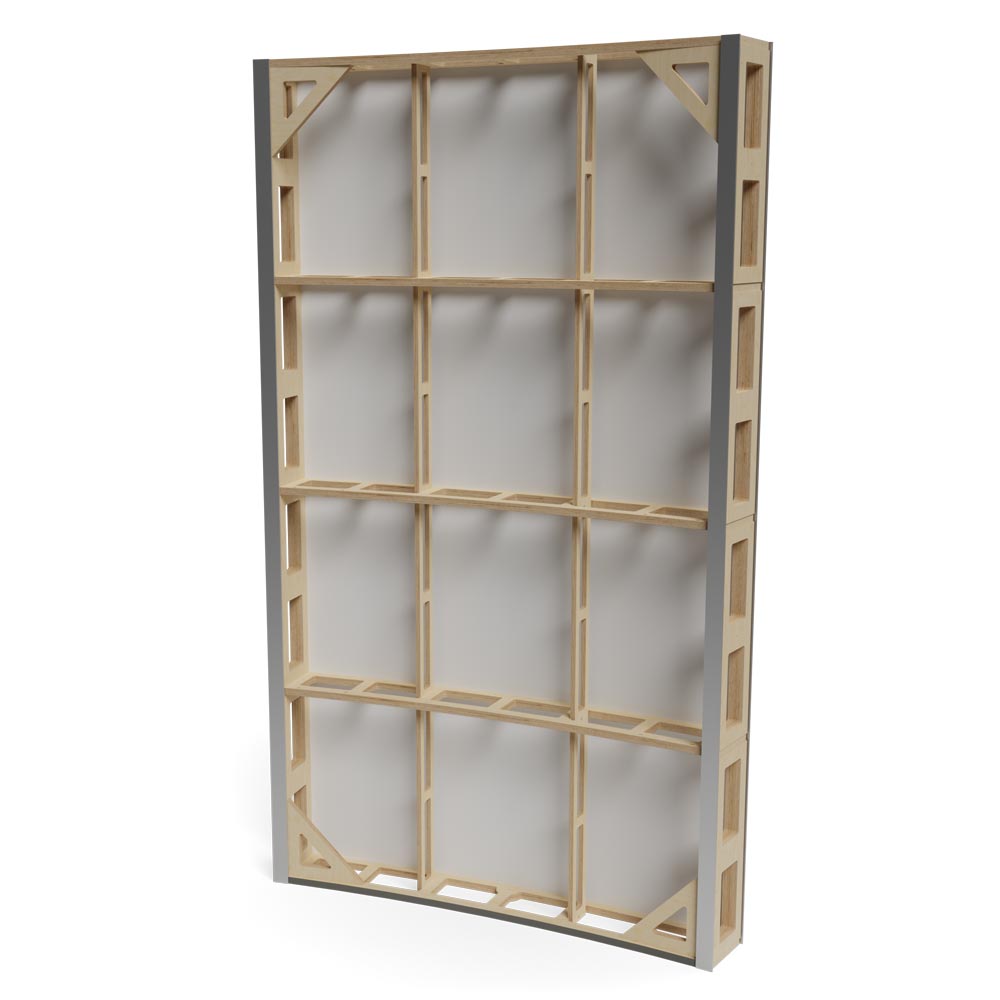

  • Interior framework is tung oiled baltic birch plywood
  • Sections can be joined at 90 degree angles with additional 6"x6" square corner connector (not shown)

Thinking about using a modular wall system in your space? We’d invite you to draw the layout you’d like to achieve by combining curved and straight components, send it our way, and we’ll help you figure out the details and cost to produce.

Request a Quote

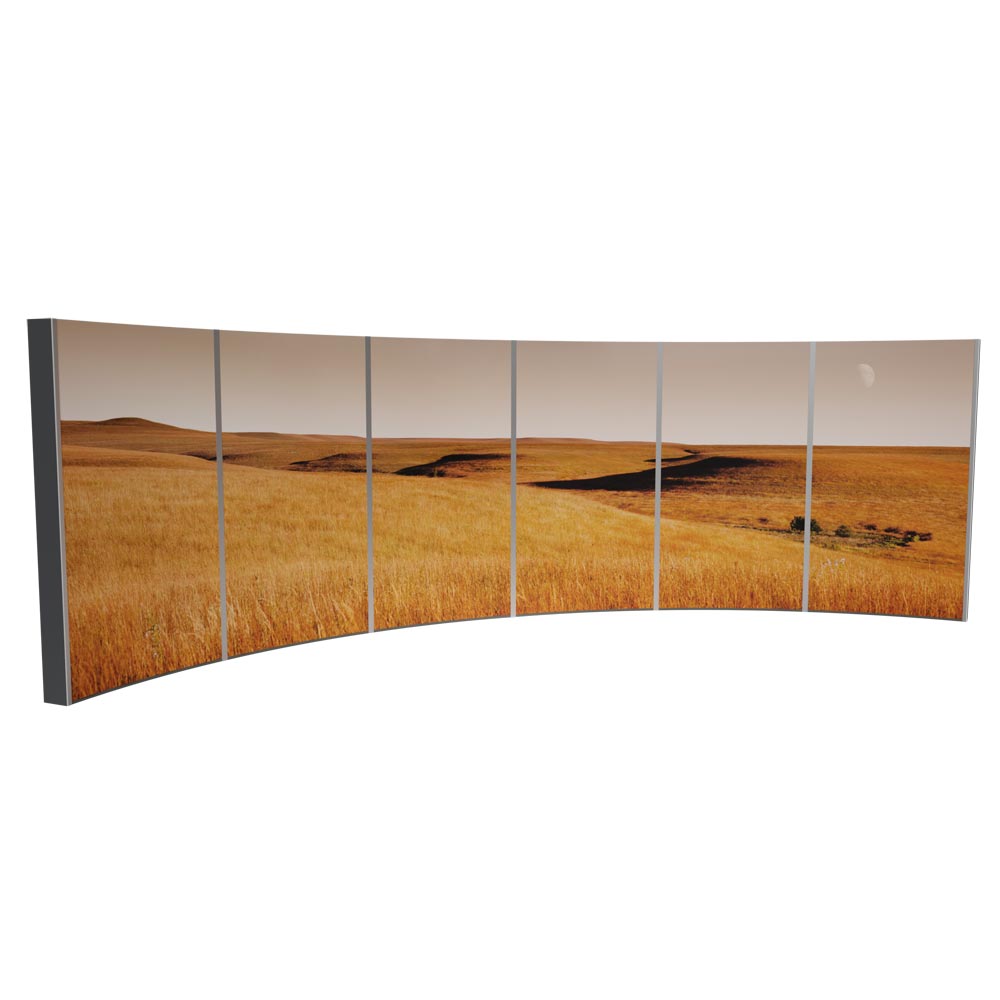

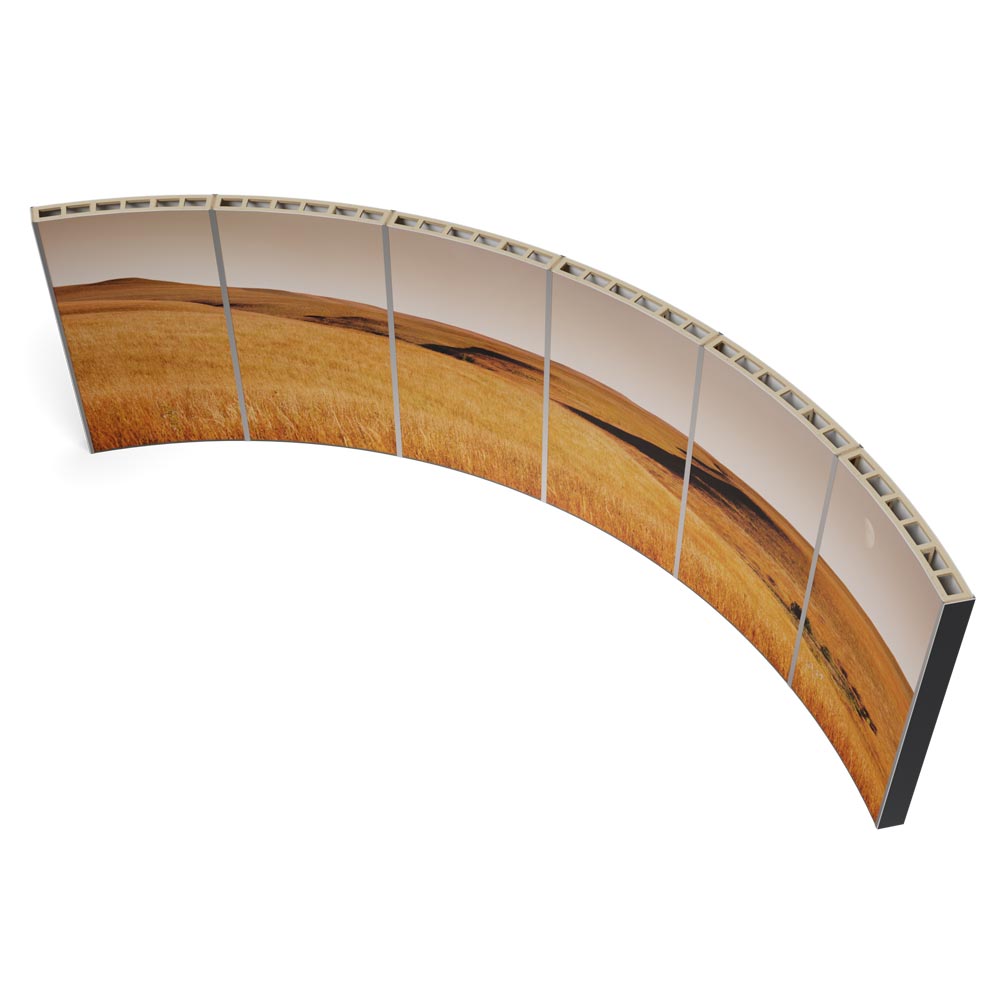

The Broadleaf Modular Wall System sections are available in curved and straight sections.

Upland® Broadleaf Modular Wall System

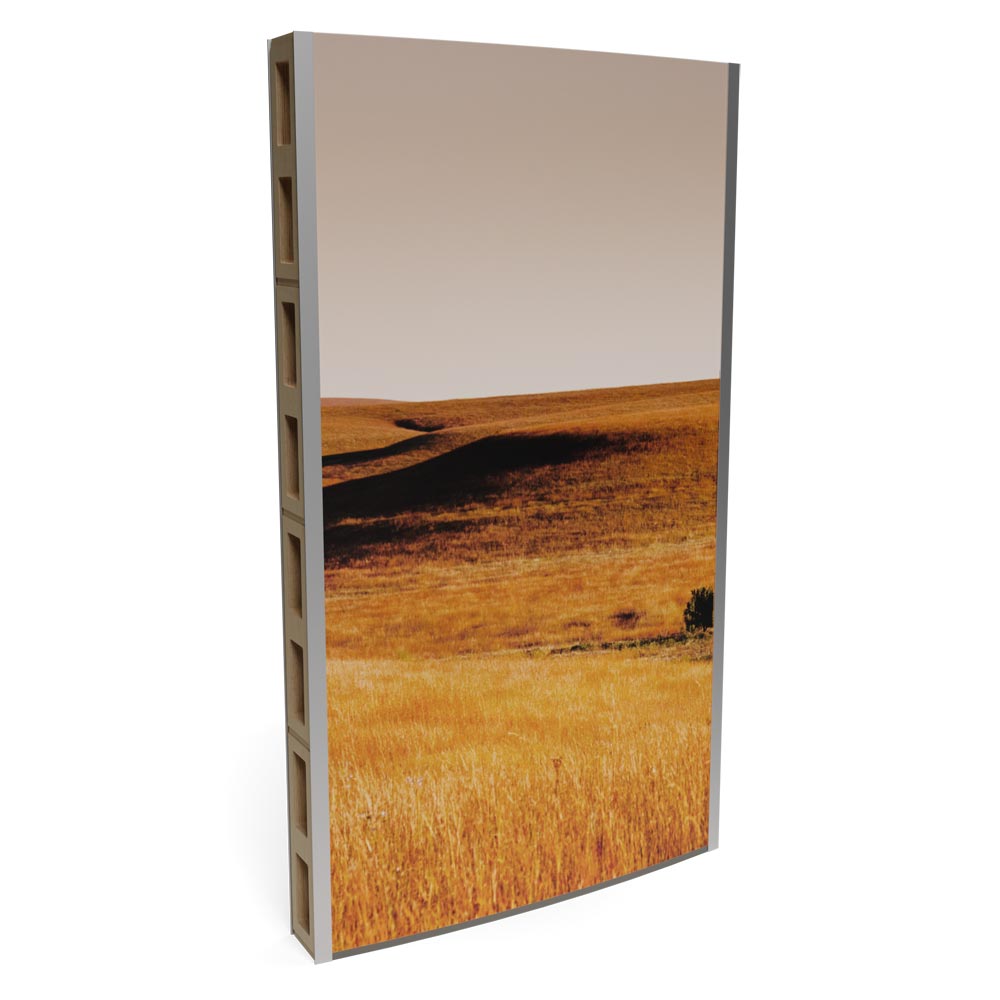

Curved Section

$1,175.00


Upland® Broadleaf Modular Wall System Dimensions

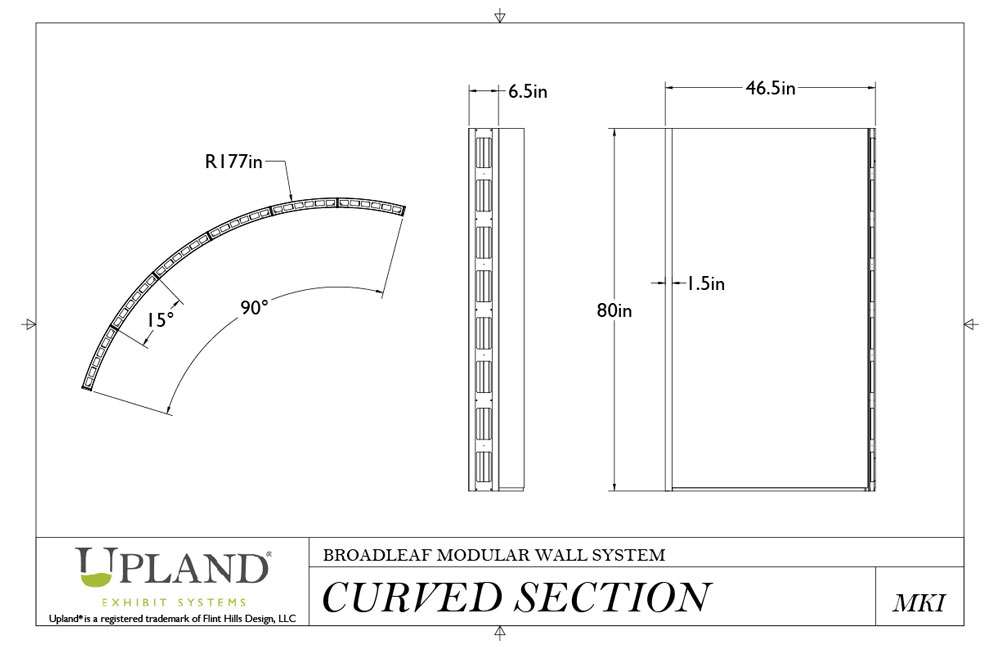

View dimension drawing for curved wall section

view drawing
Upland® Broadleaf Modular Wall System

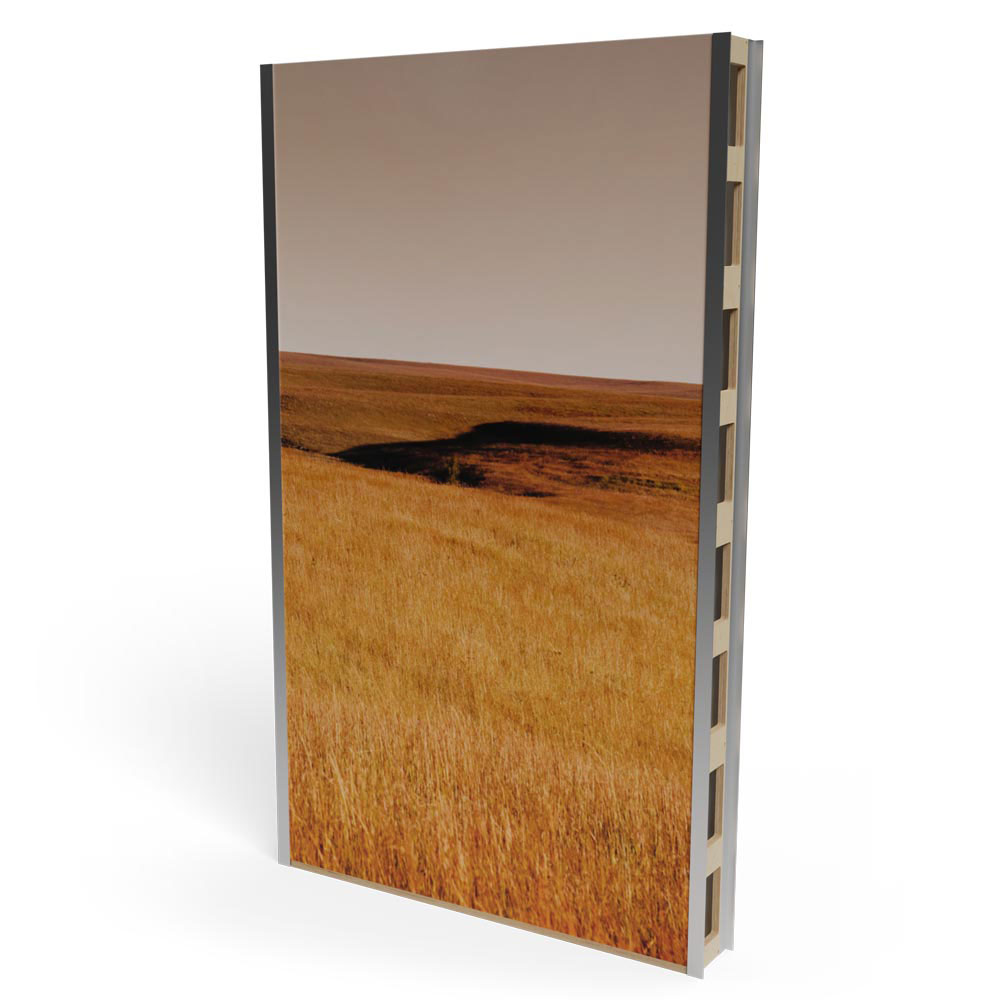

Straight Section

$975.00


Upland® Broadleaf Modular Wall System Dimensions

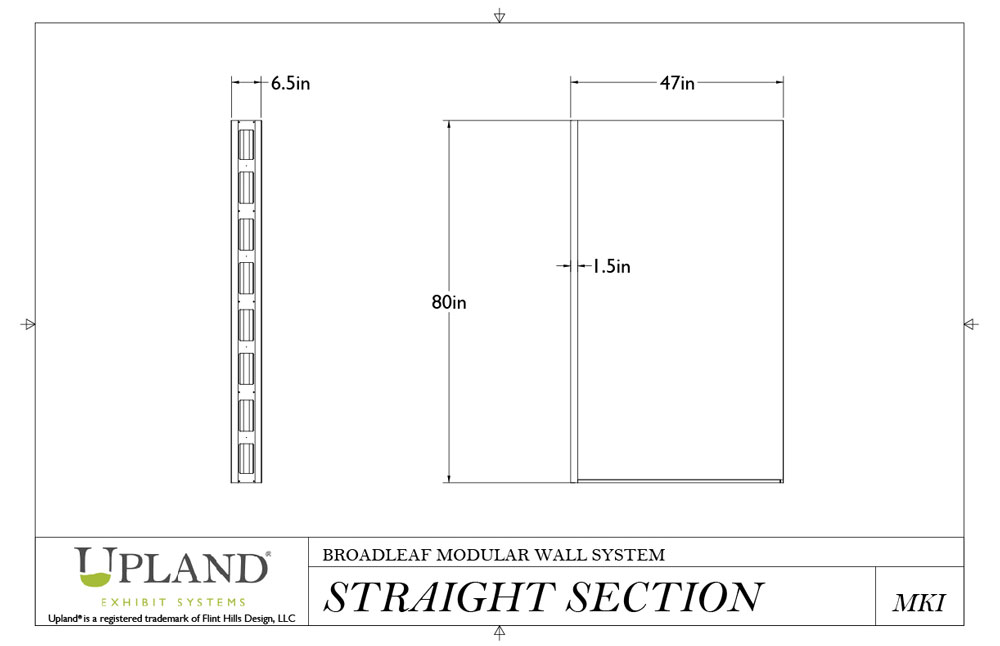

View dimension drawing for straight wall section

view drawing
Custom Sizes Available

Custom Sizes Available

This product can be customized to your desired size. The radius of the curve can also be customized.

Custom Finishes Available

Custom Finishes Included

Comes with Upland's Signature Finish in your choice of paint color or stain. View finishing options.

Ships via Freight

Freight Shipping

This item requires freight shipping.

Graphic Design Available

Graphic Designer Available

If you want professional graphic design work for your project, just let us know!
